About This

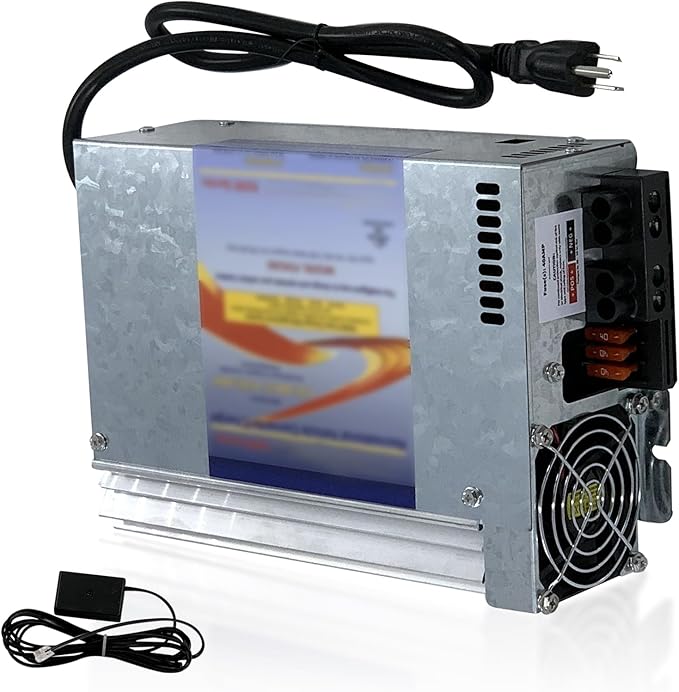

• RV Power Converter: PD9280AV – 12 V, 80 Amp Converter from the 9200 Series – with Charging Wizard that continuously monitors the voltage status and automatically manages the battery to determine whether it needs a quick charge, is fully charged and in use, or is fully charged and switches to storage mode.

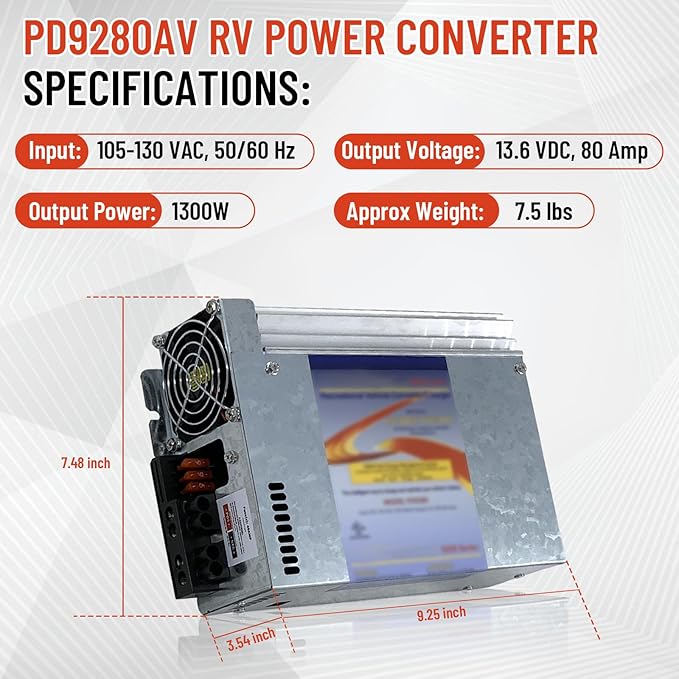

• Specifications: 1. Replace Part Number: PD9280AV; 2. Input: 105-130 VAC, 50/60 Hz; 3. Output Voltage: 13.6 VDC, 80 Amp; 4. Output Power: 1300W; 5. Approx Weight: 7.5 lbs.

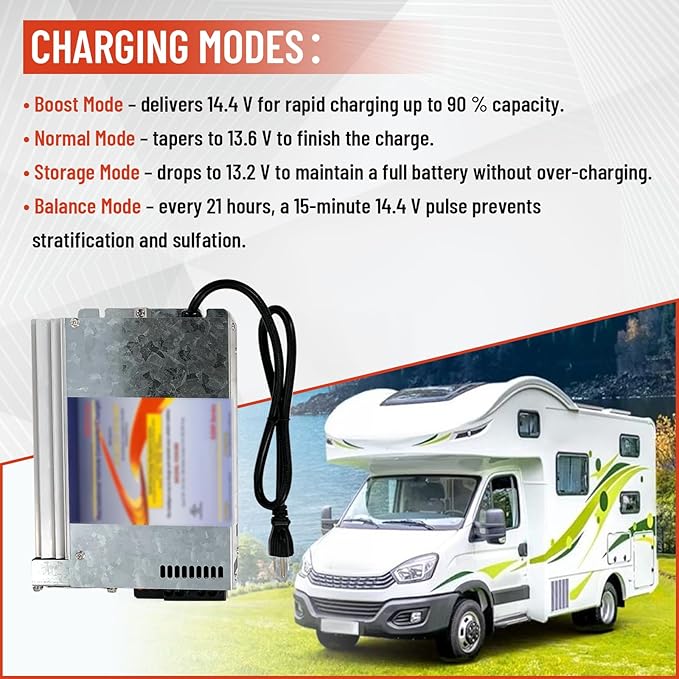

• 4 Charging Modes: This PD9280AV 9200 series rv power converter has 4 charging modes to properly re-charge or maintain the battery: 1. Boost Mode; 2. Normal Mode; 3. Storage Mode; 4. Balance Mode.

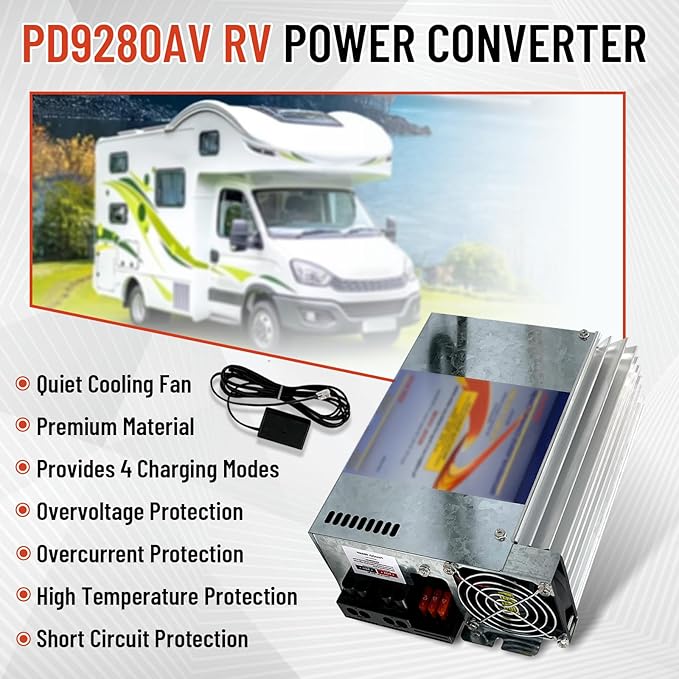

• Safety Protection: The PD9280AV RV Power Converter has reverse-battery protection to prevent damage from improper wiring; an electronic current-limiting circuit automatically reduces output voltage when maximum capacity is reached; low-line-voltage protection safeguards appliances against abnormal low voltage; and built-in safeguards against short circuits, reverse polarity, overcurrent, overheating, and overvoltage.

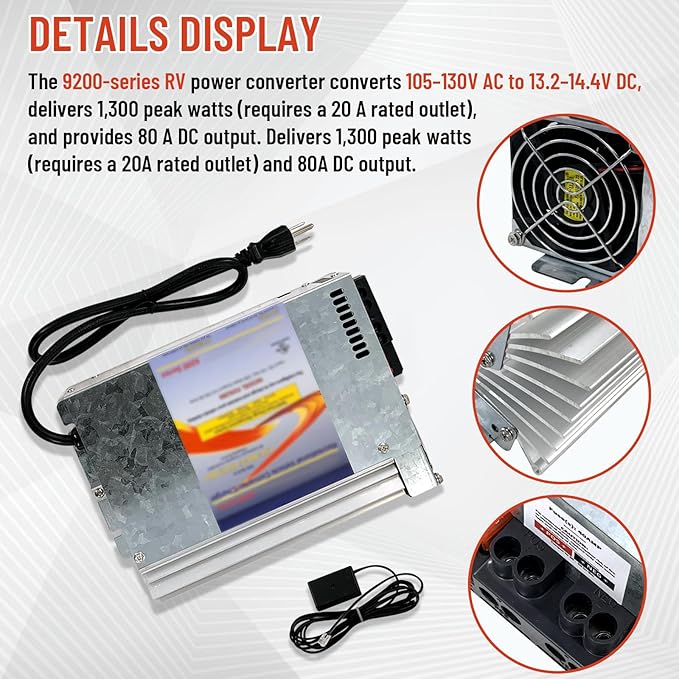

• Function: The 9200-series RV power converter converts 105–130 V AC to 13.2–14.4 V DC, delivers 1,300 peak watts (requires a 20 A rated outlet), and provides 80 A DC output. A smart variable-speed fan automatically monitors inverter temperature and starts at the needed speed; when demand is low—such as during sleep—it runs slowly and quietly.
